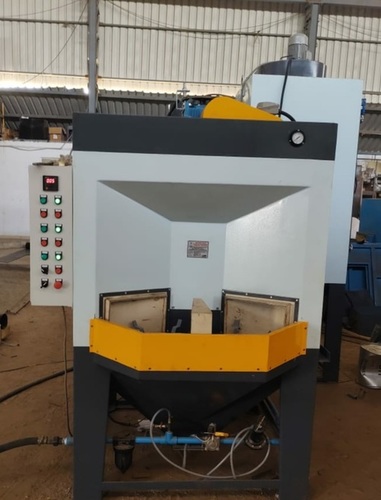

NSBEC :- Have introduced Shot Blasting Machine for Tyre Mold Cleaning Application. Themachine consist of Blast Chamber with Turn Table & Abrasive Recovery Unit& Cartridge type Dust Collector,2 Nos. of Pressure Blast Nozzle and its ReciprocationArrangement. The machine is having Track mounted trolley with Rotary Turntable.The Turntable can move in and out from Blast Cabinet through Motorized WinchingArrangement. The Turntable is equipped with suitable Fixture for holding Tyre Moldon it. The Turntable is having provision for inclining at suitable anglehydraulically.

The Blast chamber is provided with illumination (LED) through Light boxes mounted onroof of the same. The Vision Window is provided in front of Cabinet havingVision Glass with Fine Wire Mesh for protection against abrasion. Two HandHoles are provided for manipulation of Nozzle during blasting from outside bythe Operator. These Hand Holes are equipped with Hand Gloves and Gauntlet. FourSuction Guns are provided with suitable Tungsten Carbide Blast Nozzle. TheseGuns are mounted on telescopic stand inside Blast Chamber. The operator can setmanually the Gun Stand as per requirement of Mold.

The operator can also manipulate these guns manually, if required. The Work Car(Trolley) is mounted on Track Extension. The Work Car can be pulled outside andinside the Blast Cabinet through motorized winching arrangement. A suitableMedia is used like Glass Beads for cleaning of mold. The blasted media iscollected in Storage Tank / Pressure Pot from where it is sucked inside Reclaimer bythe Suction Draft created by Vacuum Suction. The cyclonic action inside theReclaimer separates the dust and abrasive. The separated abrasive passedthrough Vibrating Screen where Coarser particles and debris are separated. Theusable abrasive gets stored in Storage Tank and dust will be passed throughfilter bags. From storage tank,Hence operation of machine is Continuous Type. An anti pollutiontype of Dust Collector having Cartridge Filter Arrangement is provided whichcontinuously removes and clean dust laden air , only the air is passed outthrough exhaust. A suitable Control Panel with PLC Unit is provided. The entireoperation of Machine is controlled by PLC Program and the same can be changedas per operational requirement.
